Description

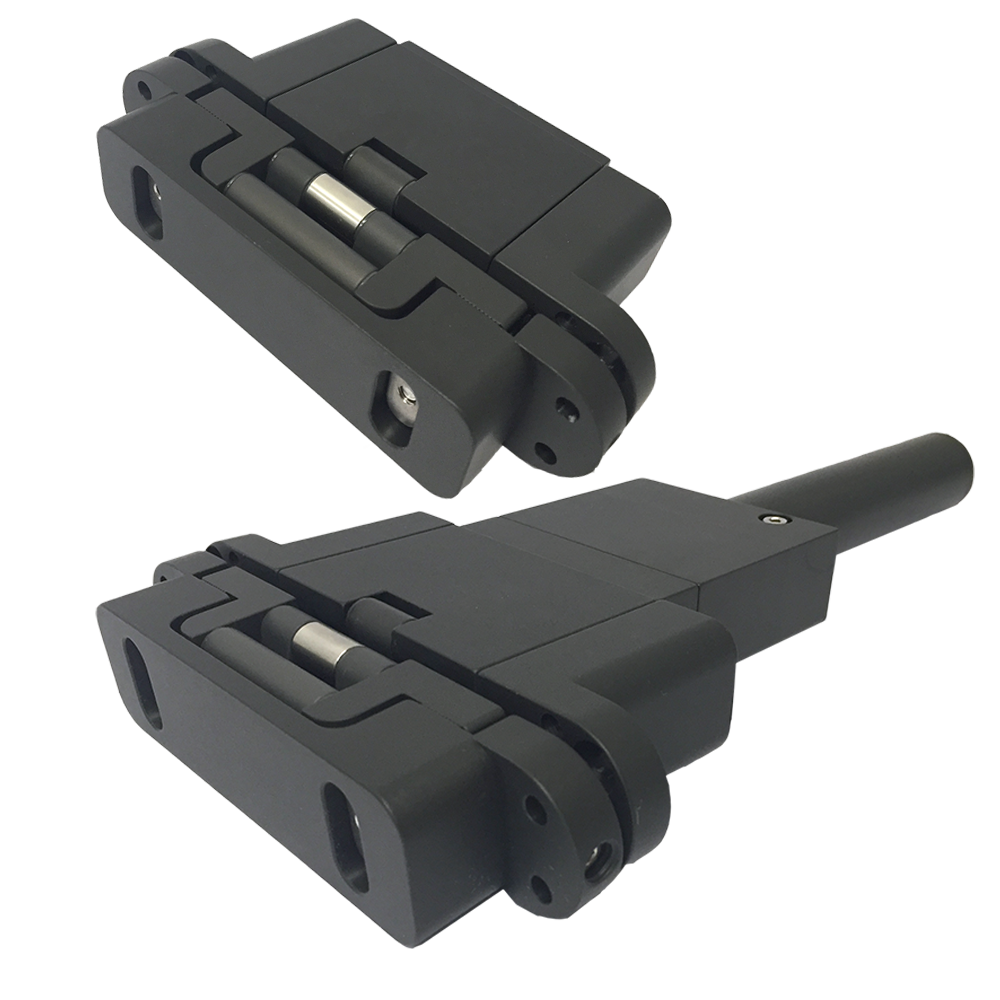

Hydraulic Gate Closer/Hinge System
• Concealed mechanisms provide unparalleled security
• No exposed parts for use as a climbing foothold
• Gate gap as low as 5/64″ (2mm)
• Secure, safe and quiet operation
• Adjustable closing speed, latching speed and backcheck

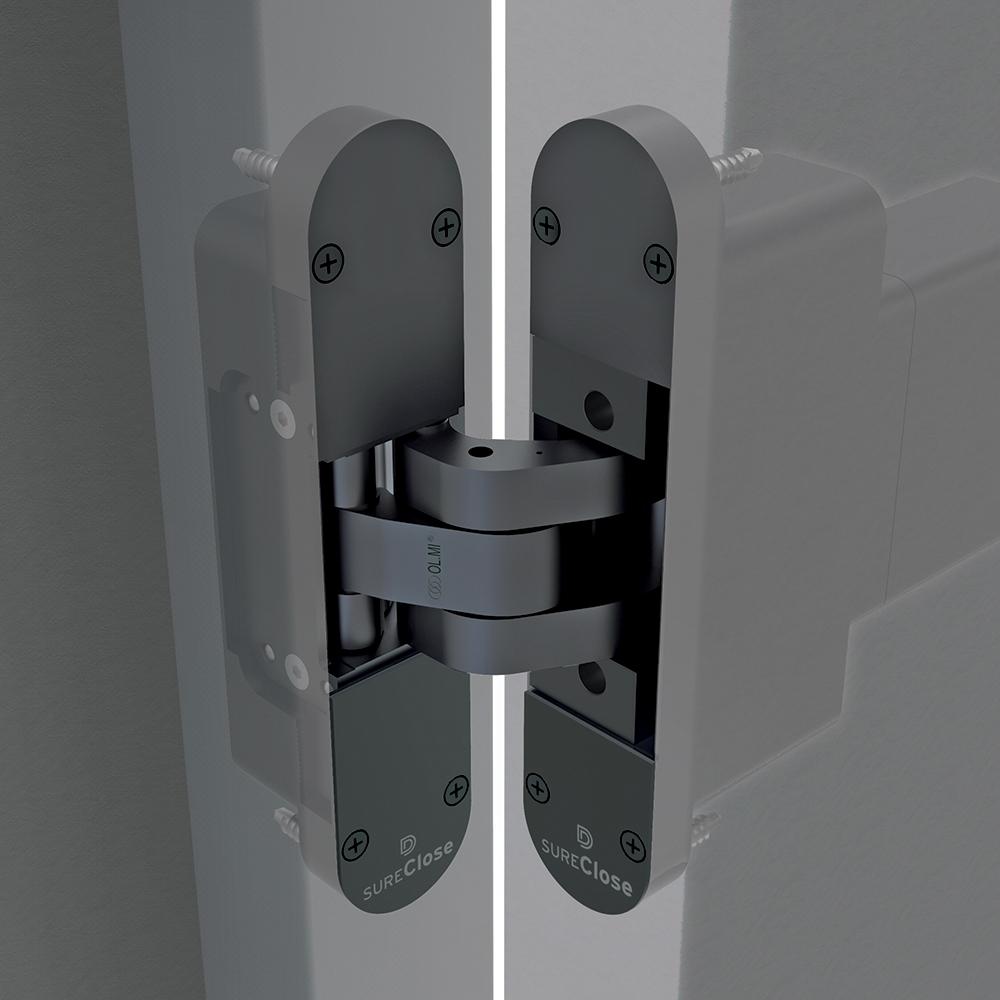

• 4 positional adjustments: lateral, vertical, depth and inclination to
ensure perfect installation
• Independently tested to over 500,000 open/close cycles
• 20-minute UL10C and cUL10C fire rating
• Suitable for ADA use

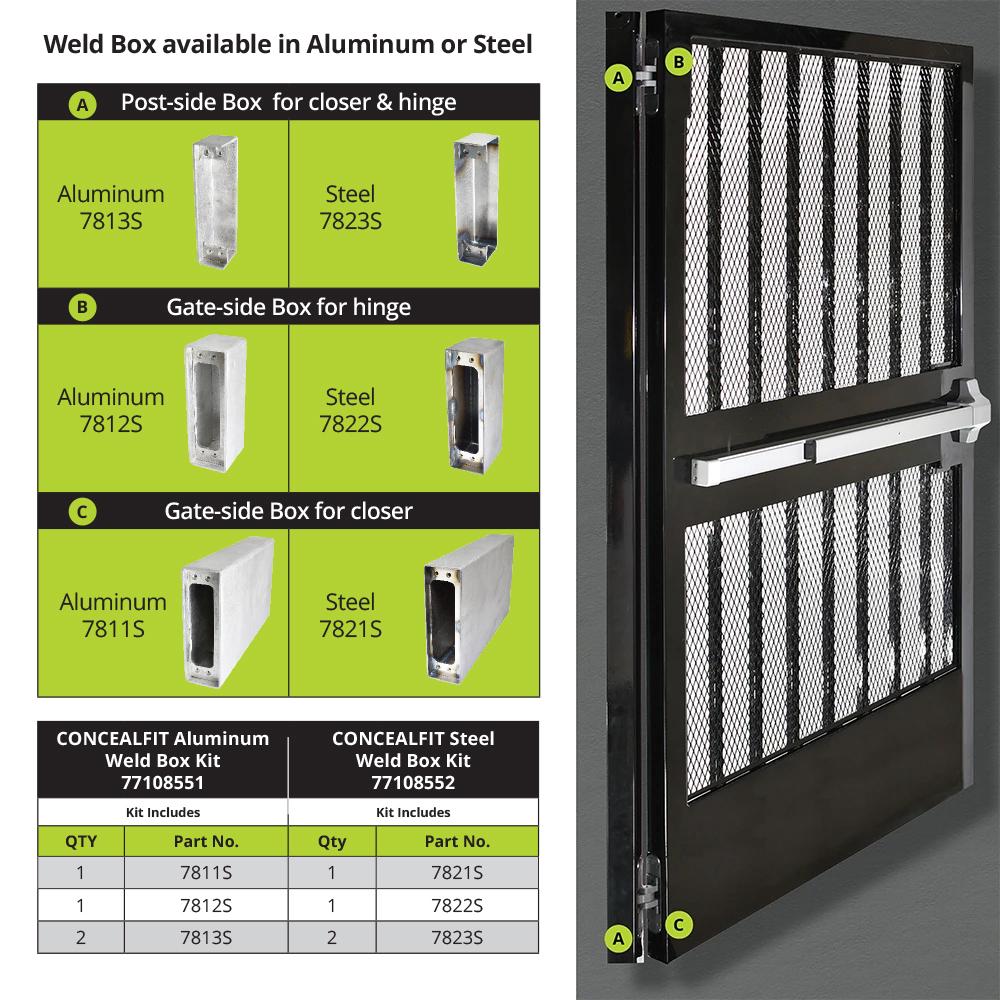

• Aluminum and steel gates require a weld box, see details left

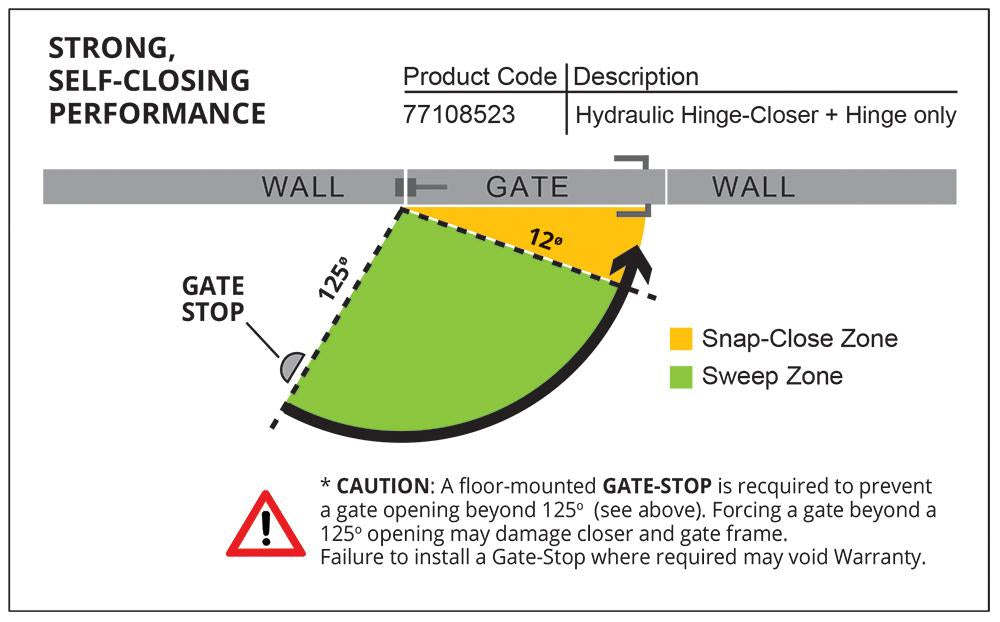

• CAUTION: A GATE-STOP
is required to prevent a gate opening beyond 125º (see fitting instructions).
Forcing a gate beyond a 125º opening may damage closer and void Warranty.
