Internally Mounted, Hydraulic, Gate Hinge-Closers
• Self-Closing from 90º – will not hold open
• Maintenance free
• Self-Closes gates up to 120kg (265 lbs) – See Chart
• Multiple adjustment options
• Prevents gate slam noise & gate damage
• 50 Micron hard anodizing (Aluminium Components)
• High corrosion resistance
• 5 Year Limited Warranty
- Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance.
Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.

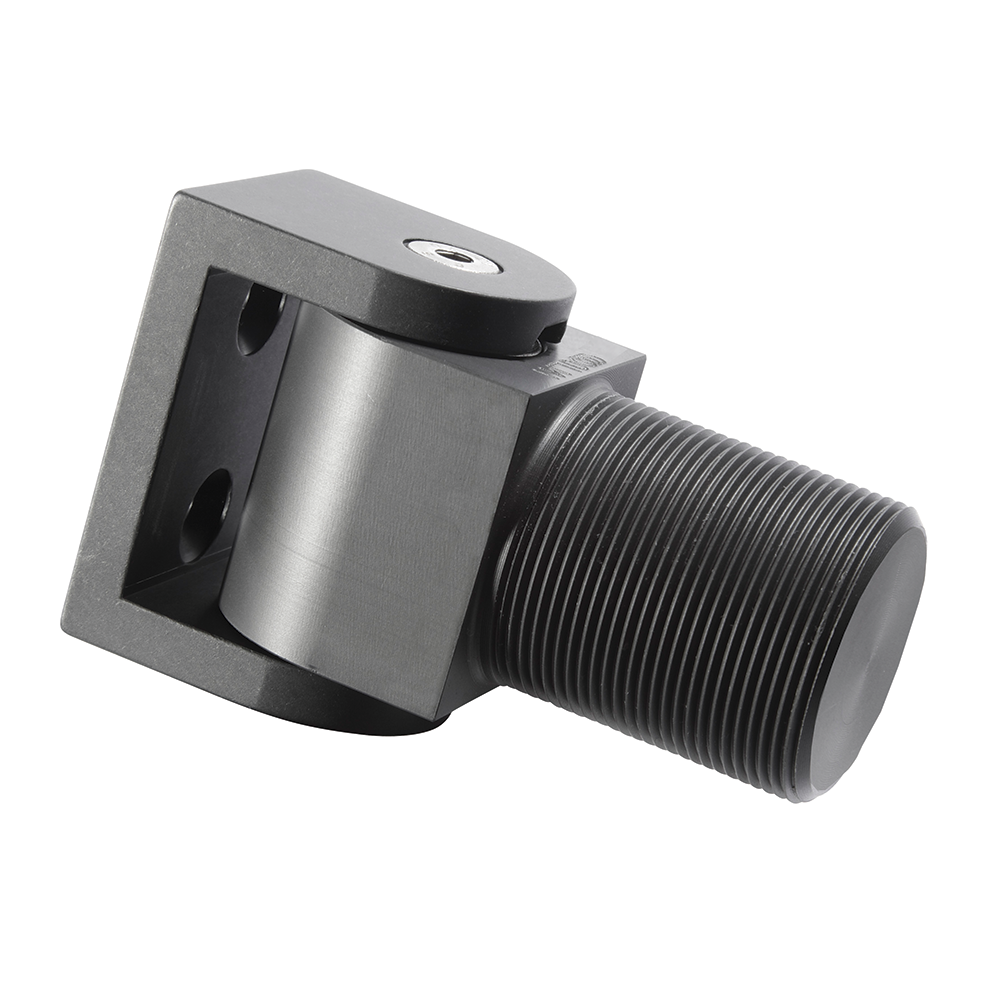

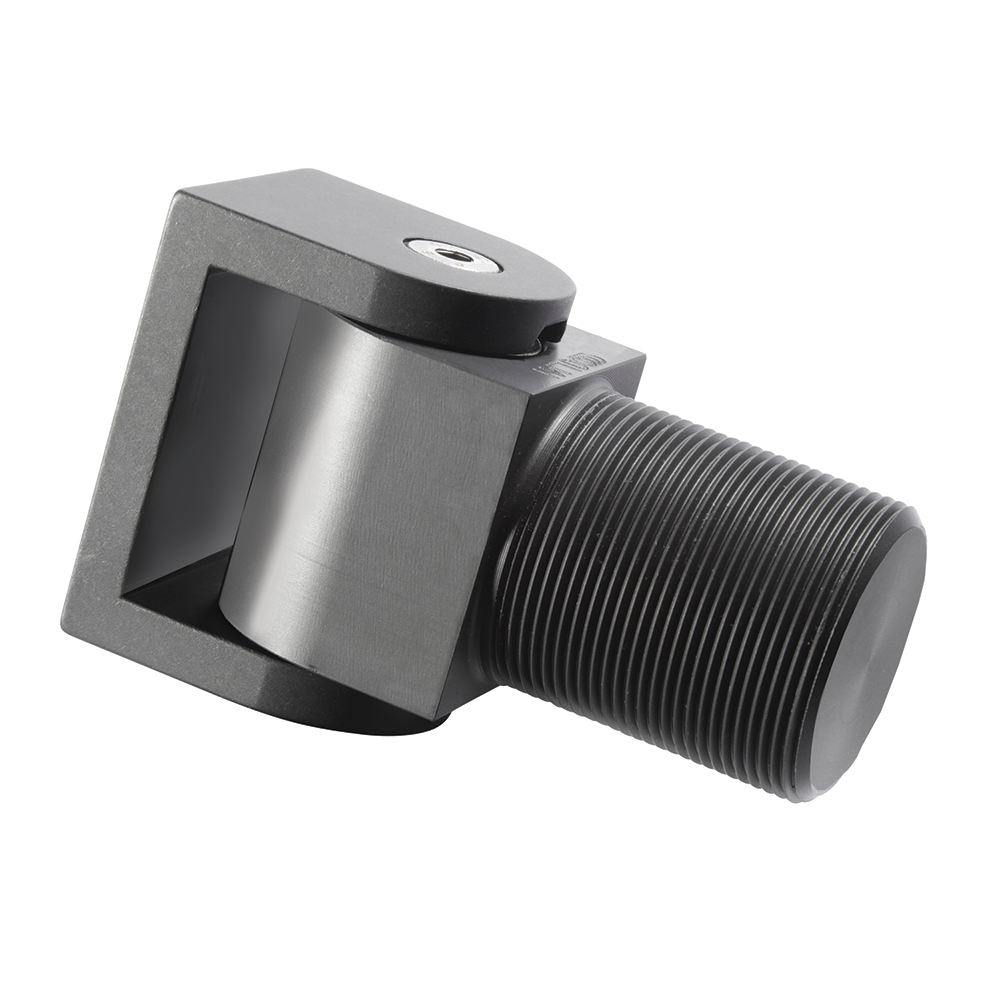

The SureClose® SM hinge was designed for large industrial-style gates, such as found on commercial and heavy residential gates, plus estate gates and gates around factories, schools, access control areas and driveways that don’t require self-closure.

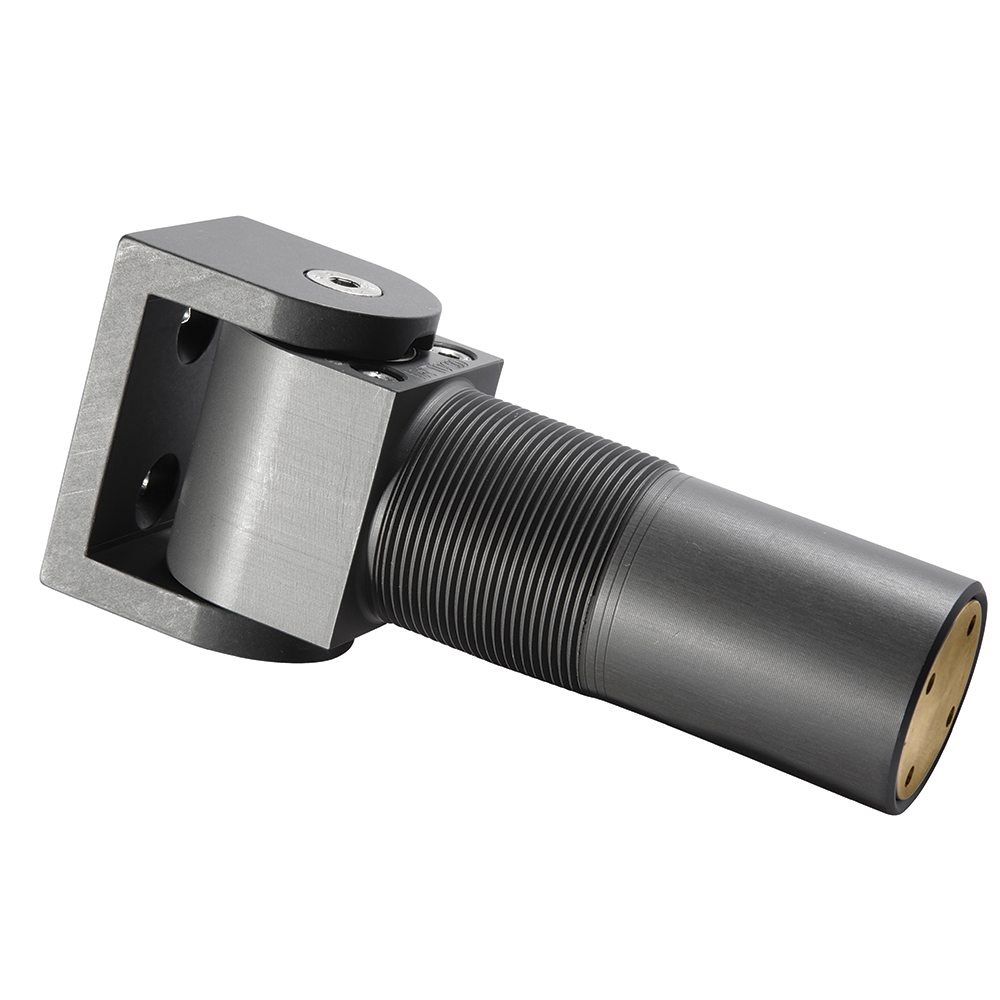

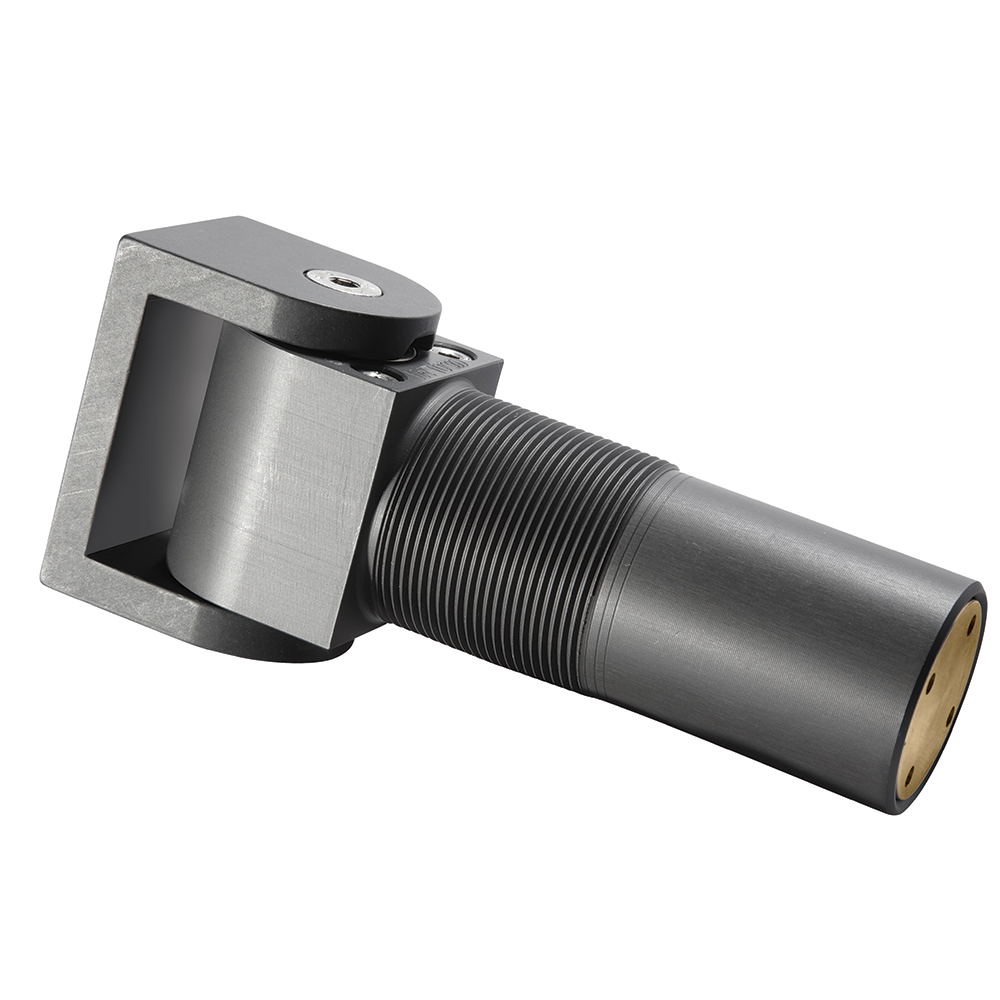

The SM model features extra-large hinge pins and dual thrust bearings designed for high loads. Save money when SM is used as the bottom, load-bearing hinge along with a SureClose® 57 or SureClose® 108 closer.
All SureClose® hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately.
Aluminium gate mounting brackets: Pre-drill using 5mm drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.

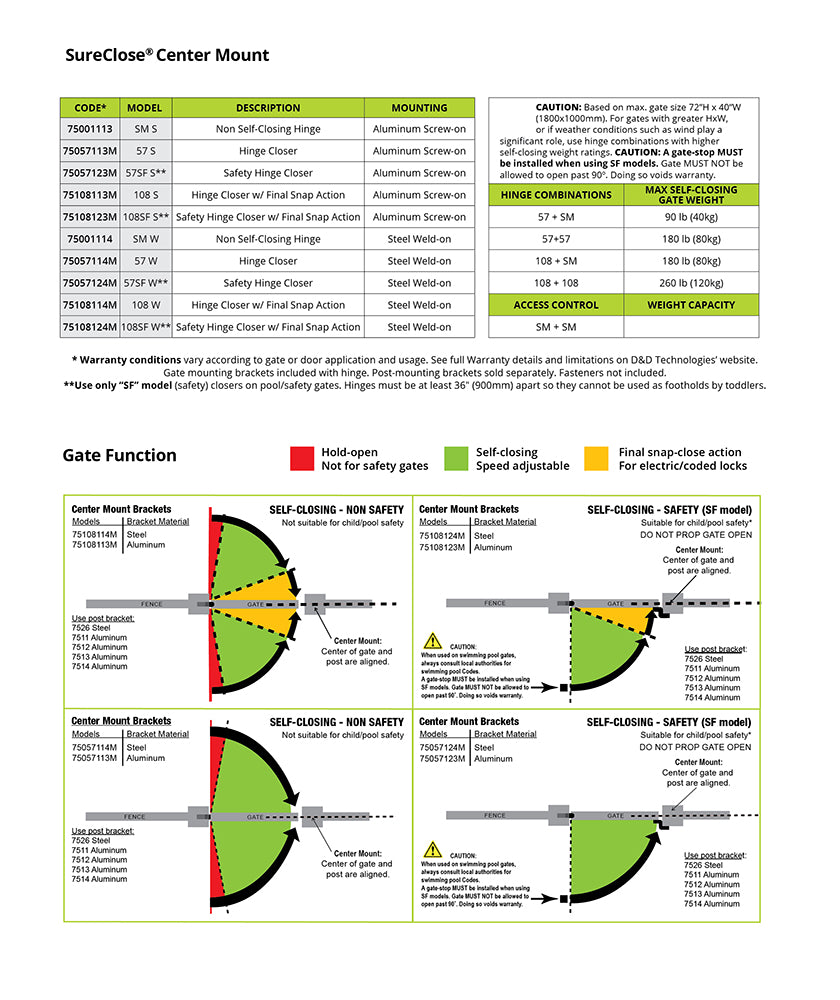

| Brand |
SureClose®
|
| Product Code |
75001113-75001114-75057113M-75057114M-75057123M-75057124M
|
| Gate Application |
Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
|
| Gate Type |
Self-Closing, Non Self-Closing
|
| Gate Material |
Aluminium, Steel/Ornamental Iron
|
| Self-Closing Gate Weight |
Up to 120kg (260lbs)
|
| Approx Gate Size |
1.0m W x 1.8m H (4ft x 6ft)
|
| Gate Frame/Post Shape |
Square-to-Square
|
| Min Post Size |
50mm+ (2")
|
| Ideal Gate Gap |
64-76mm (2½ - 3")
|
| Fixing Method |
TBC
|
| Colour/Finish |
Anthracite Grey
|
